High Response Frequency High Speed Weigh In Motion 40000kg Dynamic Weighing System

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Name : High Speed Weight In Motion

Voltage : AC 220V

Weighing error : 3%~10%

Speed rate : 0.5~105km/h

Rated load of single axle : 40000kg

Maximum overload capacity : 60000kg (single axle)

Division value : 50kg

MTBF : ≥20000h

Temperature : -45~+80℃

Protection level : IP68

Contact Now

High Response Frequency Dynamic Weighing System & High Speed WIM Scales

Product Function

1.1 the system can automatically complete the real-time and rapid detection of vehicle axle number, single axle load or axle group load and total vehicle and cargo mass, and output the detection results.

1.2 weighing speed range: (0.5 ~ 105) km / h.

1.3 load capacity (uniaxial): 40t; Overload capacity (single shaft) ≥ 150%.

1.4 vehicle separator: it can accurately separate freight vehicles, and the vehicles are consistent with the test data. The detection error of axle spacing is ≤± 15cm, and the cross lane recognition rate is ≥ 95%.



Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

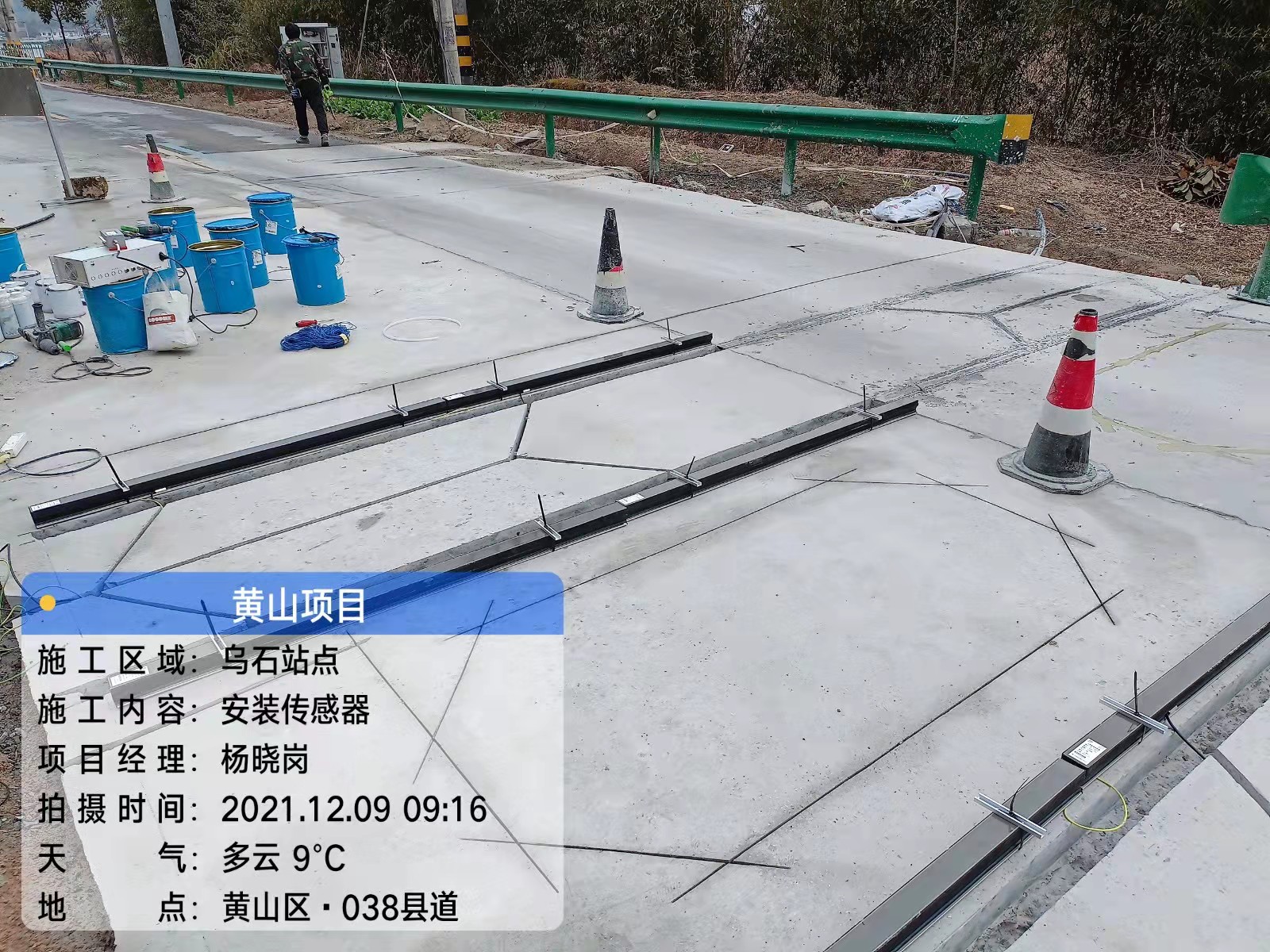

Project Case

​High Response Frequency High Speed Weigh In Motion 40000kg Dynamic Weighing System
