Off Site Dynamic Weighing Management System - Truck Overload Treatment

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Type : In Motion Axle Scale

Voltage : AC 220V 50Hz

Error : 3%~10%

Speed : 0.5~105km/h

Single axle load : 40Ton

Max overload capacity : 60Ton (single axle)

MTBF : ≥20000h

Temperature : -45~+80℃

Contact Now

Off Site Dynamic Weighing Management System - Truck Overload Treatment

Product Description

The unattended and non-stop high-speed dynamic weighing system governs the overload detection mode, detects the weight of cargo vehicles running normally on the carriageway, dynamically monitors whether the vehicle is overloaded according to the load limit set by the system, records and outputs the overload value and relevant data, and at the same time, a variable information board is configured on the F-pole in front of the vehicle, Automatically identify the vehicle license plate number and enter it into the management system, and prompt the overload vehicle alarm signal. Cooperate with the traffic signs on the roadside to guide illegal vehicles into the exit channel or static fine inspection management station, so as to effectively eliminate the entry of out of gauge vehicles. Provide strong technical support for the implementation of dynamic comprehensive overload management.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

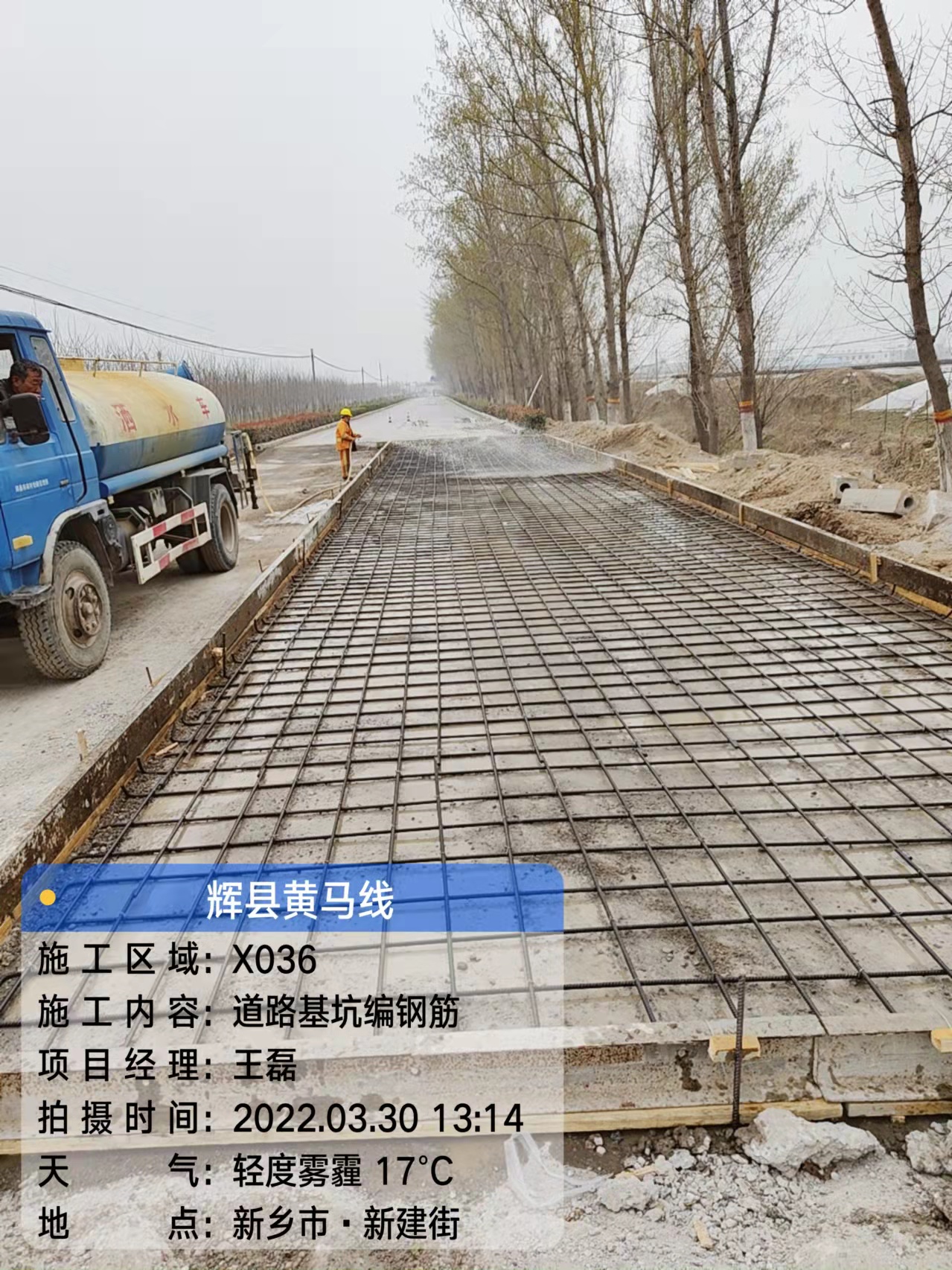

Project Case

​Off Site Dynamic Weighing Management System - Truck Overload Treatment
