Name: Dynamic Quartz Truck Weight Sensor With High Sampling Rate amp WIM System
Brand: Hengliang
Price: 20000 USD

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Name : High Speed Weight In Motion

Voltage : AC 220V 50Hz

Weighing error : 3%~10%

Speed rate : 0.5~105km/h

Axle load : 40T (single axle)

Single axle max overload : 60T

MTBF : ≥20000h

Temperature : -45~+80℃

Contact Now

Dynamic Quartz Weighing Sensor With High Sampling Rate & WIM System

Product Description

No need drainage and maintenance
Use special rubber and pouring one time, embedded roadbed and form an integral whole with the road surface after installation. No need drainage, no need further daily maintenance in application.
Long life span
Excellent time stability, no aging phenomenon, no need or little need to calibration, not less than 10 years life span.
Great durability ability
Quartz sensor accept 5.400.000 times 50KN load change during durability test, it did not show any signs of damage.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

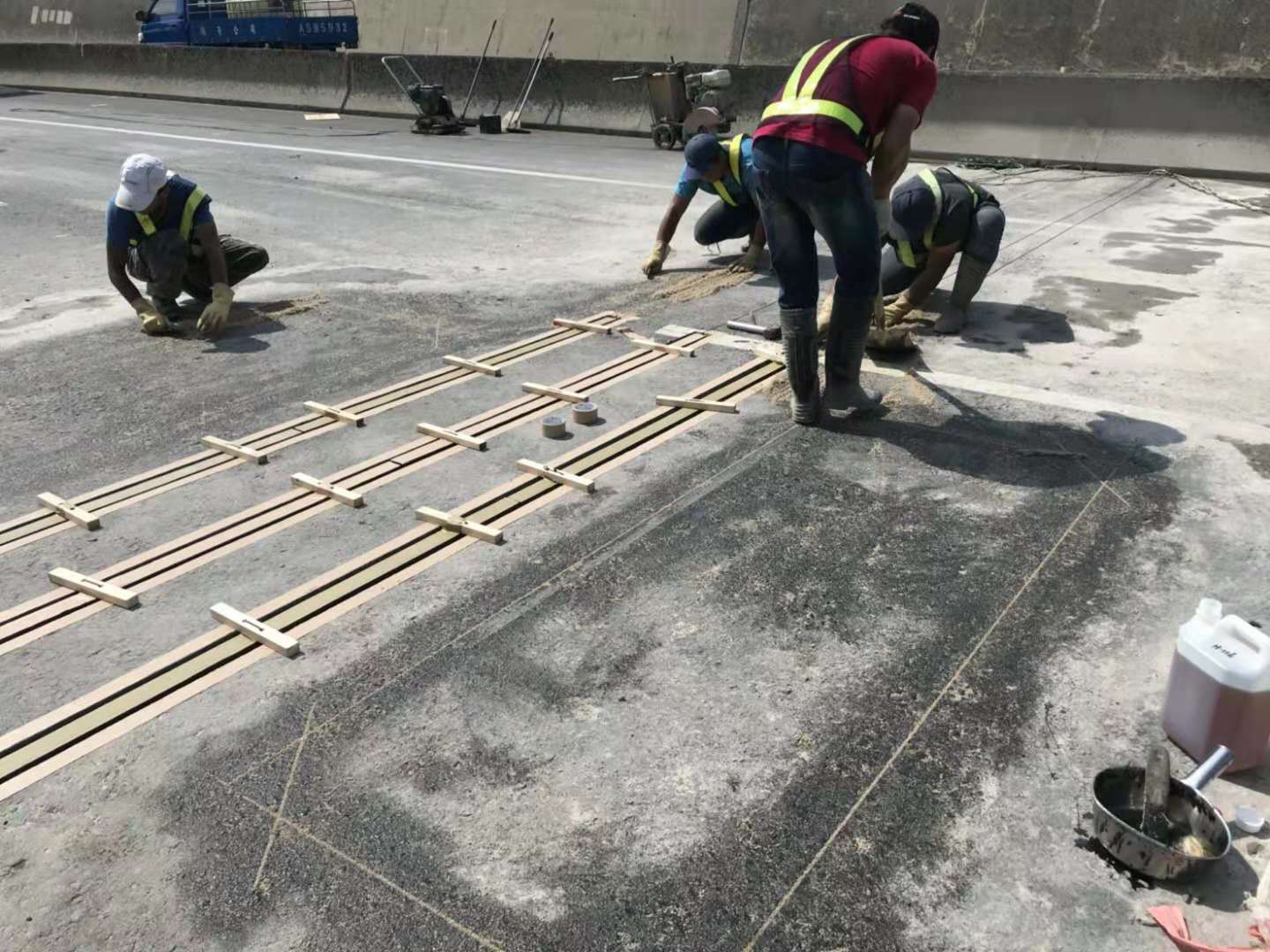

Project Case

Dynamic Quartz Truck Weight Sensor With High Sampling Rate & WIM System
