Name: 05105kmH In Motion Axle Scales Road Overrun Management System
Brand: Hengliang
Price: 20000 USD

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Type : High Speed Weight In Motion

Working voltage : AC 220V

Weighing error : 3%~10%

Speed range : 0.5~105km/h

Axle load : 40Ton (single axle)

Axle max overload : 60Ton (single axle)

MTBF : ≥20000h

Temperature : -45~+80℃

Contact Now

0.5-105km/H Speed Road Overrun Management System & In Motion Axle Scales

Product Description

Road surface selection:The weighing area should not be set up in traffic congestion sections, bends, and cross slope relatively large sections; the mounting position of the front from the traffic light area not less than 600 meters, the distance behind the traffic light area not less than 200 meters; in general, lane longitudinal slope is less than 3%, cross slope is less than 2%.
Pavement better for concrete surface, concrete mark not less than C40; (C40 means the cube compressive strength standard value of 40N/mm2)

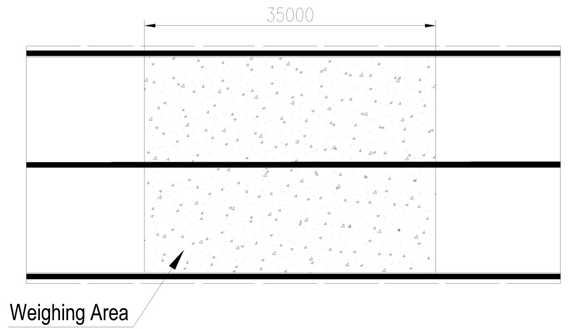

Total length of the construction site is no less than 35 meters, the weighing area flatness error is less than ±3mm, so as to avoid the rough surface which may cause the vehicle bump from influencing the weighing accuracy, individual regional distribution as shown in the figure:

0.5-105km/H In Motion Axle Scales Road Overrun Management System

After the completion of the construction, the road surface should be flat without concave and convex defects and weighing area flatness error is less than ±3mm.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

Project Case

0.5-105km/H In Motion Axle Scales Road Overrun Management System
