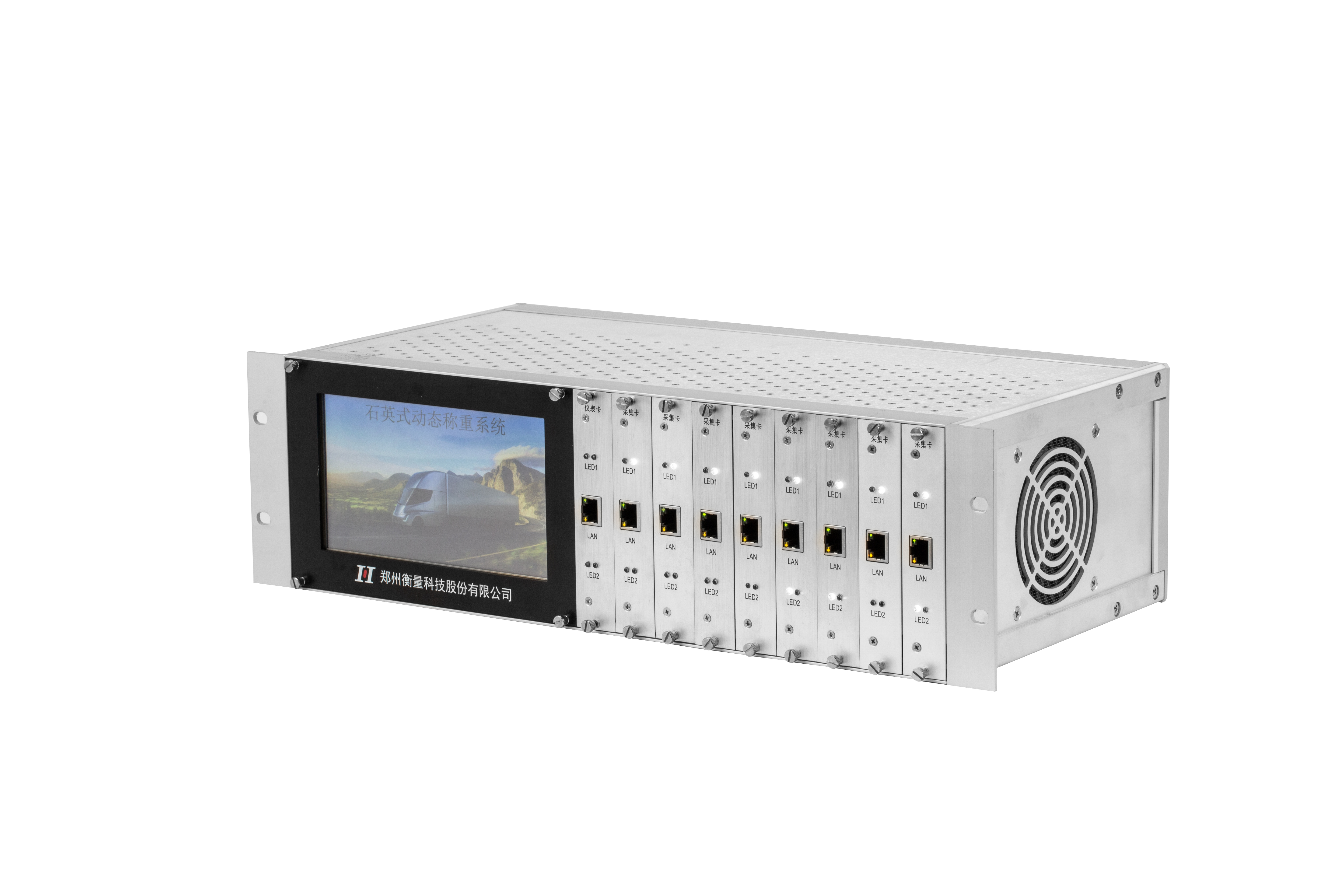

Intelligent Weighing Controller for High Speed WIM System

Name: Intelligent Weighing Controller for High Speed WIM System
Brand: Hengliang
Price: 6600 USD

Error of Axle Base : ≤ ±100mm

Data Interface : RJ45

Display : Monochrome,320*240 lattice

Total weigh error : < ± 5%

Speed rate : 0.5~120km/h

Data Store : 10000 vehicle data

Material : AL

Speed Error : ≤ ±1km/h

Camera Trigger Mode : Switch Trigger

Number of Lane : ≤ 8

Temperature : -30~+70℃

Power voltage : AC220V 50Hz

Brand Name : Hengliang

Model Number : X21

Certification : ISO

Place of Origin : China

MOQ : 1 PCS

Price : USD 6600-13200/PCS

Payment Terms : T/T

Supply Ability : 50 PCS/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Contact Now

Intelligent Weighing Instrument & Truck Scales & Axle Weighter

Product Description

After the vehicle passes through the quartz crystal sensor, the charge amplifier converts the charge signal detected by the sensor into voltage signal (0 ~ 10V), and processes the signal after conversion. When the vehicle completely passes through the sensor, the data processing controller displays the detected vehicle axle weight, axle group weight and vehicle weight on its own LED display screen. At the same time, process the vehicle type information data, such as detecting the axle type (single axle / coupling), wheel type (single wheel / double wheel on one side), vehicle driving speed / acceleration, and constantly detect and process the system working state and fault information data. After receiving the vehicle detection end signal sent by the ground induction coil, the data processing controller packs and automatically stores all the detection data of the vehicle in the database, and sends the detection data to the upper computer at the same time.

Product Parameters

Voltage	AC 220V 50Hz
Material	AL
Display	Monochrome,320*240lattice
Data Store	10000 vehicle data
Data Interface	RJ45
Number of Lane	≤8
Working Temperature	-40℃～75℃
Camera Trigger Mode	Switch Trigger
LengthWidthHeight	483225133mm
Function	It analyzes charge amplifier input signal, and concludes axle, wheelbase, axle speed, vehicle model, gross weight and other information
