0.5-40km/H Low Speed Weigh In Motion Station Overload Inspection

Name: 0540kmH Low Speed Weigh In Motion Station Overload Inspection
Brand: Hengliang
Price: 20000 USD

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Name : weigh in motion station

Voltage : AC 220V

Weighing error : 5%~10%

Speed rate : 0.5~40km/h

Single axle load : 40Ton

Max single axle load : 60Ton

Division value : 50kg

MTBF : ≥20000h

Temperature range : -45~+80℃

Protection level : IP68

Contact Now

Low Speed Dynamic Weighing System For Overload Inspection Station

Product Function

The system is composed of low-speed dynamic weighing equipment as the main body, supplemented by a series of peripheral equipment.

Weighing equipment includes dynamic vehicle weighing platform, axle identifier, infrared vehicle separator, axle identifier and weighing control cabinet.

Peripheral equipment includes lane controller, guidance screen, voice reminder, special keyboard, license plate recognition, etc.

Additional signs, ground markings and other auxiliary guidance facilities.

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

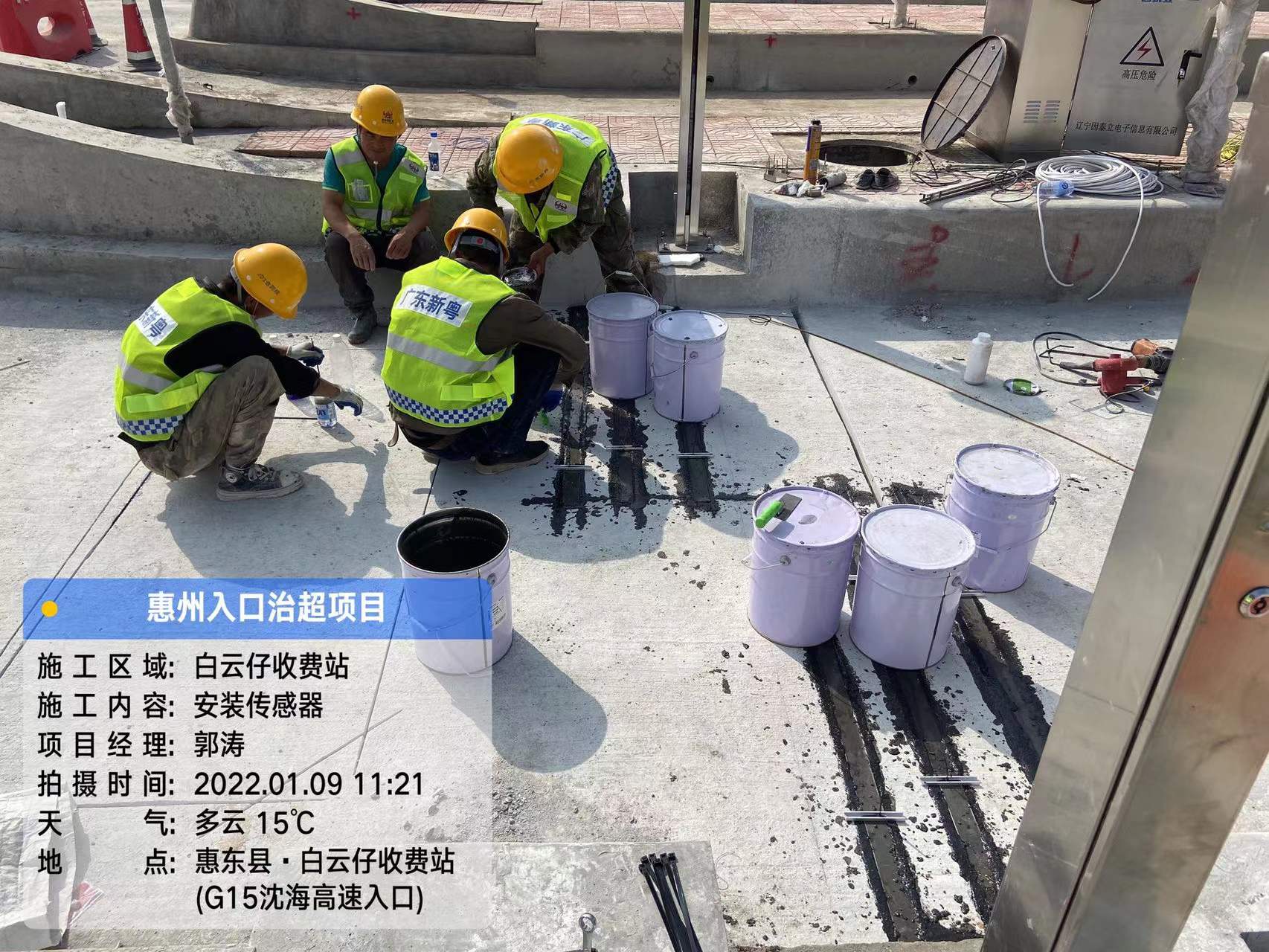

Project Cases
